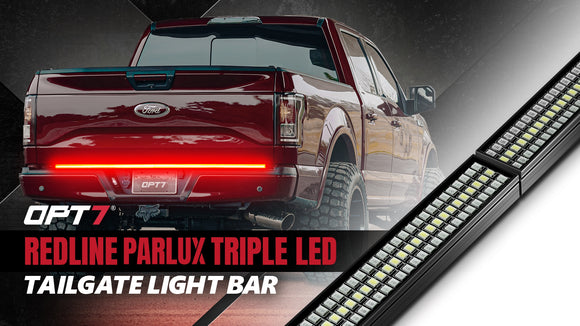

Redline Parlux Triple Row Tailgate Light Bar with Reverse & Sequential Turn Signals

3X More Stopping Power Than The Standard Redline.

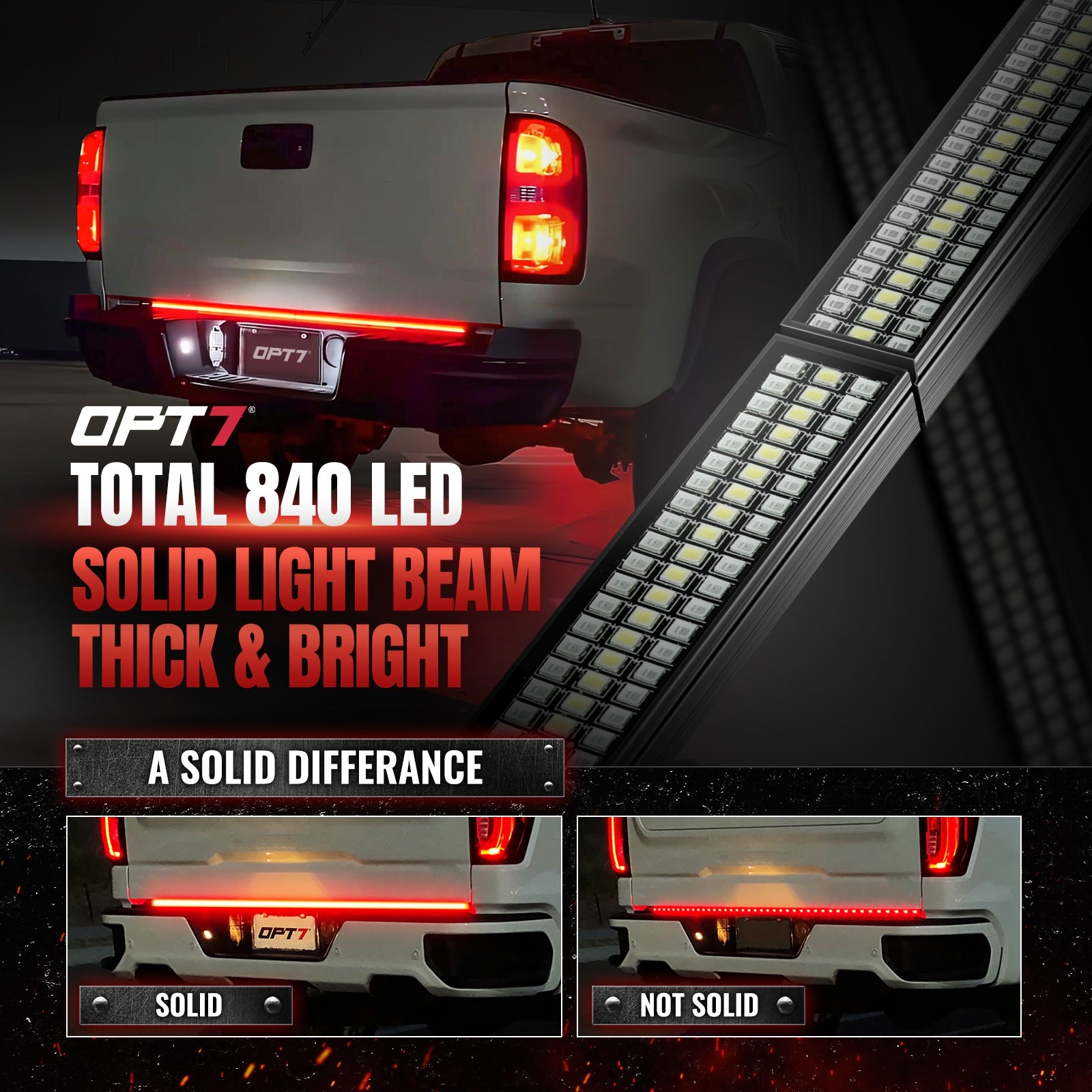

The Ultimate In Tailgate Lighting: Command attention with every signal. Bombard those behind you with a volley of 1080 powerful LED's (or 840 on the 48" model). Three complete rows of lights dedicated to maximizing your pickup's presence with an attractive and unique beam of light.

Exclusive "1-2-3" Sequential Turn Signals.
While other tailgate turn signals are just a standard "blink", the Triple Stack gives your truck a distinctive and sporty look with "1-2-3" Sequential amber or red turn signals. The same style used by a certain American-made muscle car and only offered by Redline.

Tinted Windows Making It Hard To See Behind You?
Our extra bright reverse lights will help illuminate the area behind your ride when reversing. Have a backup camera? Say goodbye to grainy videos and see a much clearer picture at night!

Go Ahead, Take It To The Lake.
A lot of folks claim to be waterproof, but Redline actually is. Using a rust-resistant aluminum body and an IP67 waterproof silicone, Redline is protected end to end from any sand, dirt, dust, snow, or water.

Can Handle a Minnesota Winter.
It's not always sunny in Minnesota, but that's OK! Redline is a built to last even at negative 20 Fahrenheit!

The Best Part...No Drilling Required!

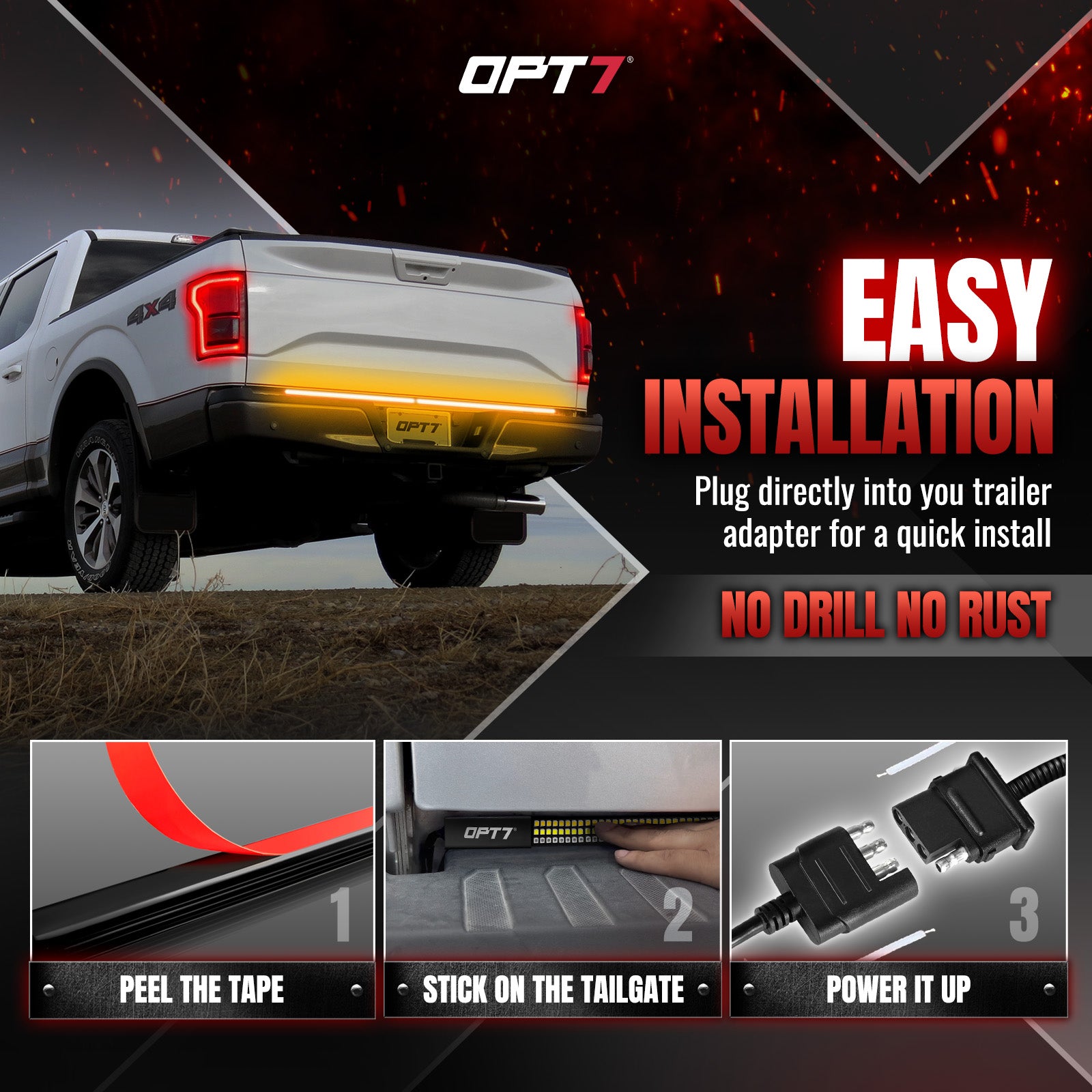

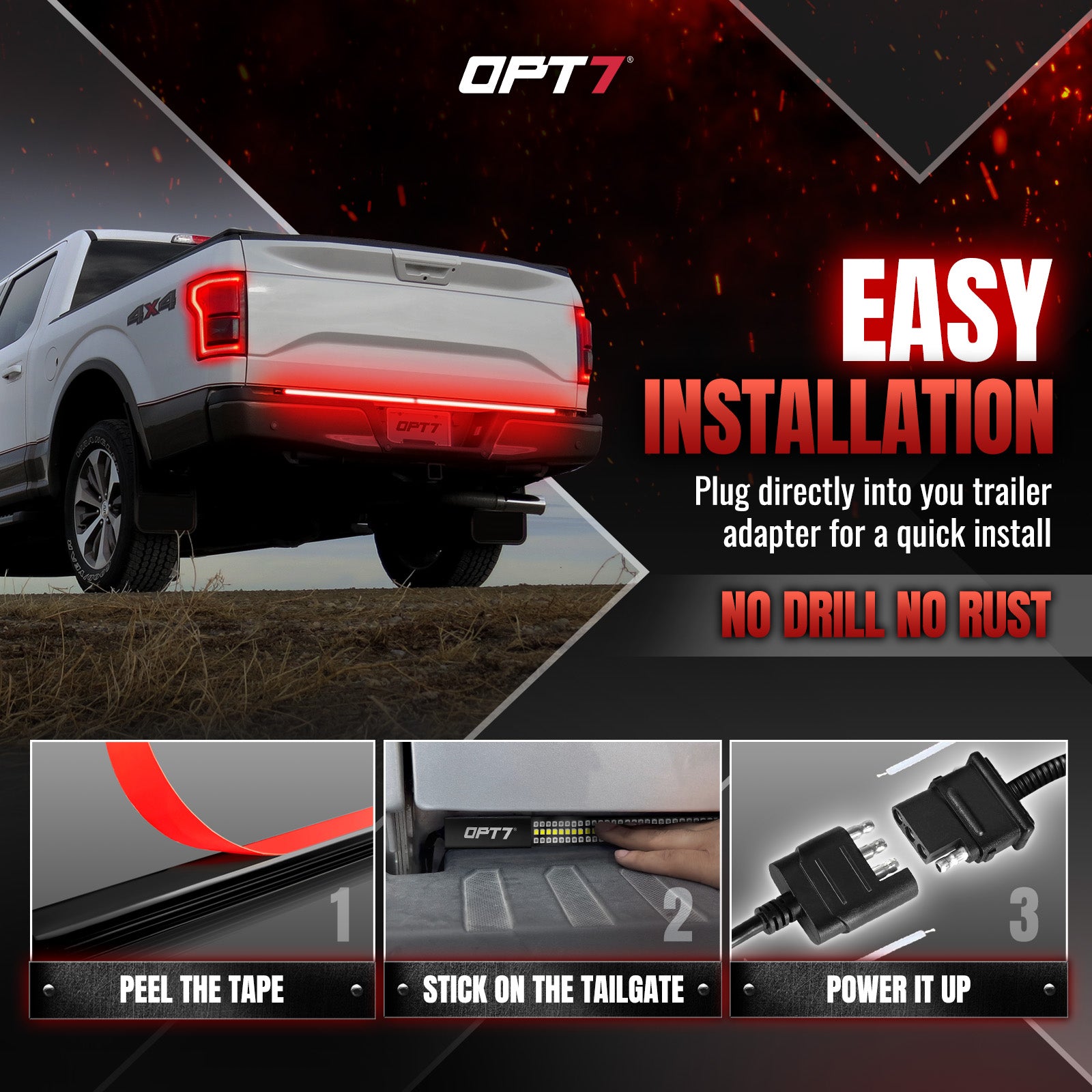

Made to be as a simple and strong as possible. Simply peel, prep, press onto your pickup and this add-on is as good as factory installed. Comes with a tough-as-nails adhesive enhancer that increases hold strength over 5x. No need to drill, it ain't goin' anywhere.

Plug 'N' Play Ready

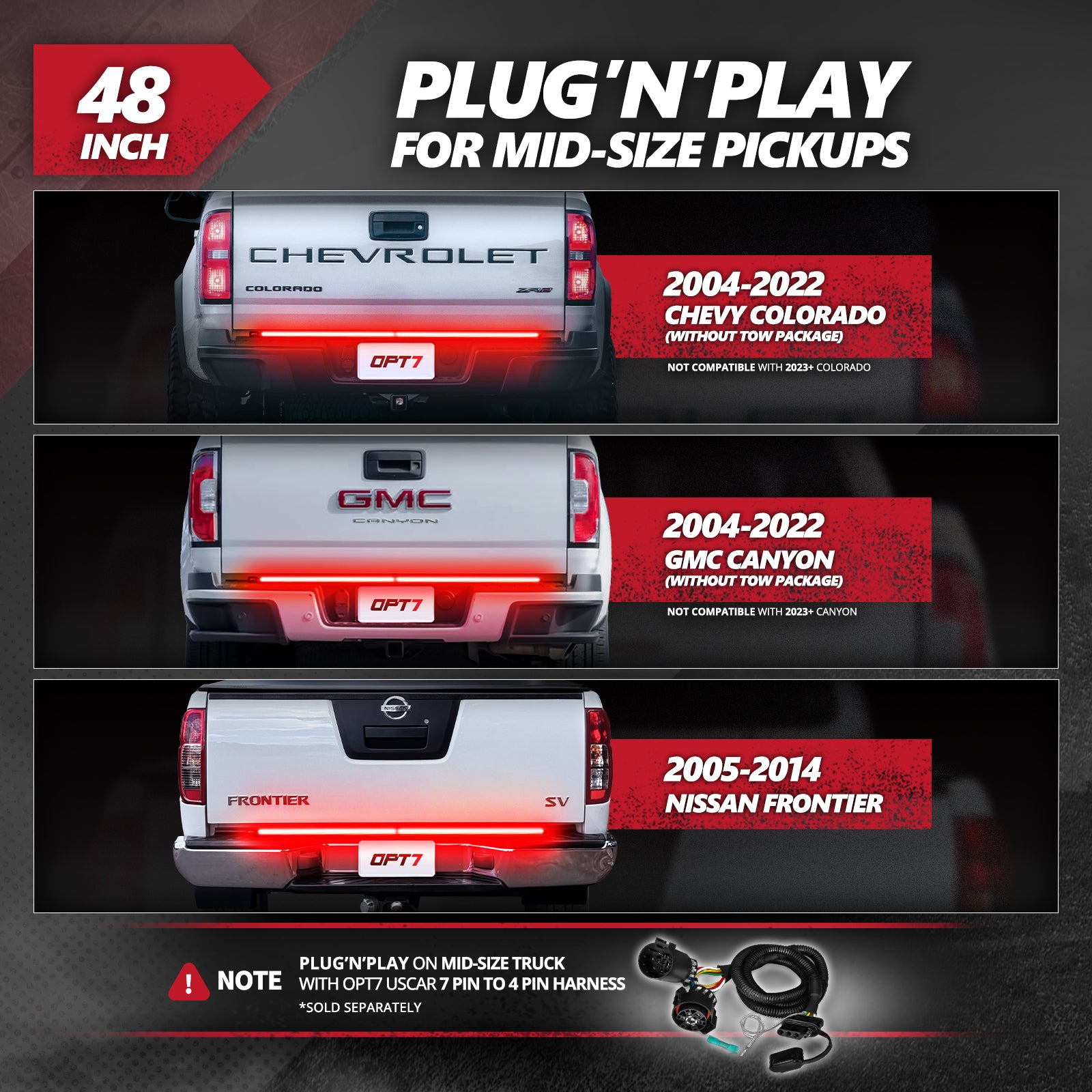

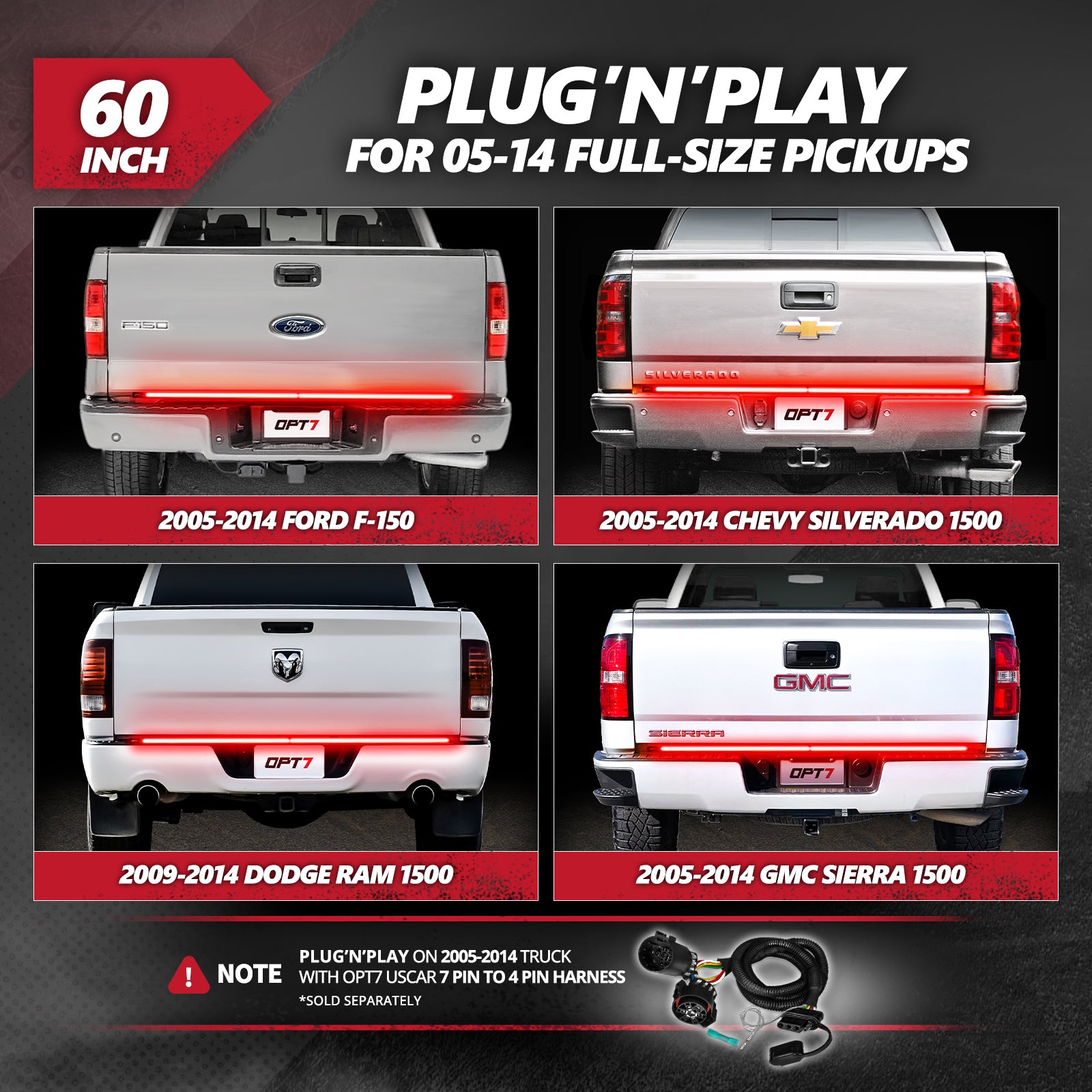

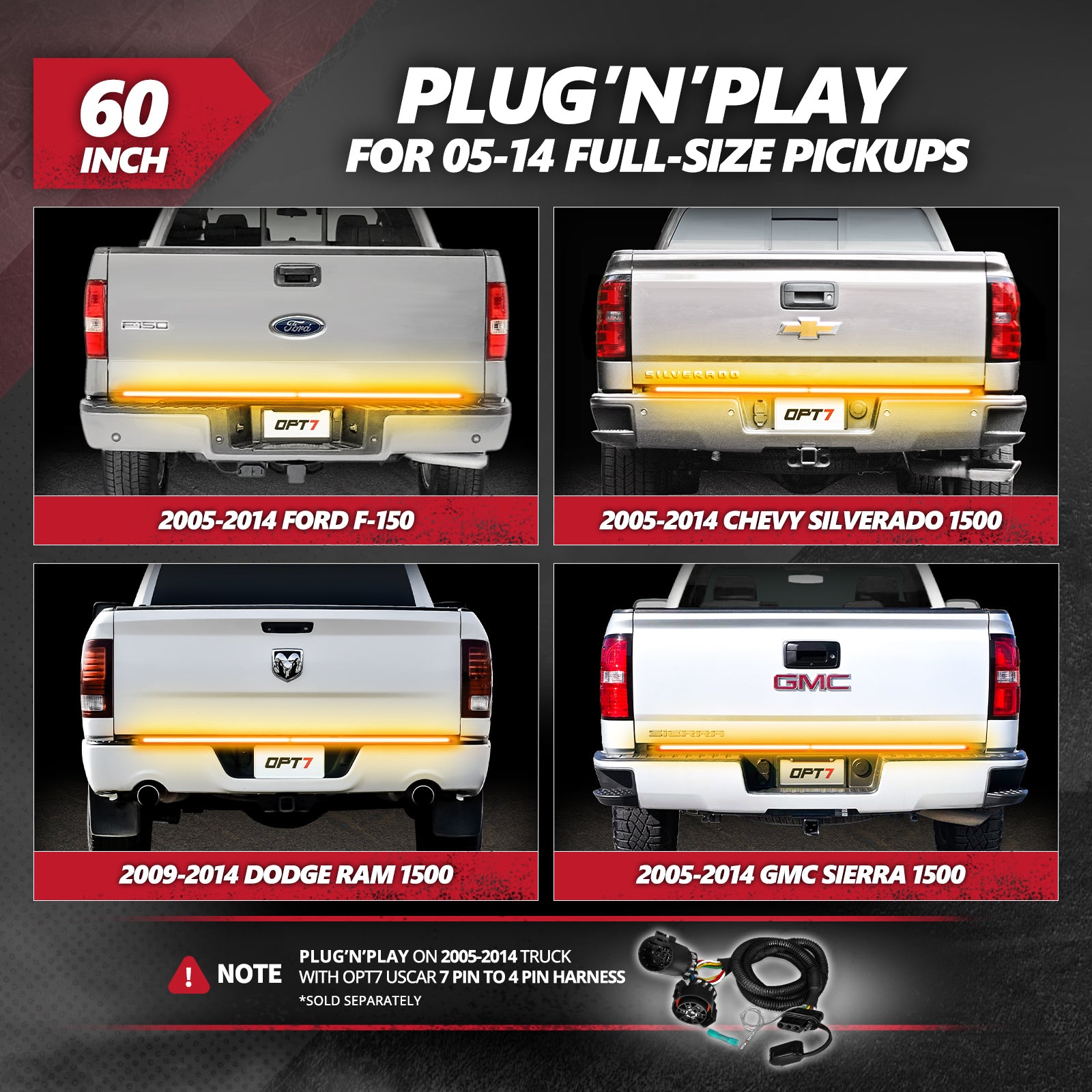

Plugs directly into your 4-way flat trailer adapter for a quick install. (Reverse light will require additional wiring, instructions provided if needed). If you have a 7-way round trailer adapter you will need to get the 7-Way Round Blade to 4-Way Flat Pin Adapter (Click Here). Planning on doing some towing? Purchase our Y-Splitter (Click Here) and power both your tailgate light bar and the lights on your trailer at the same time.

Spare Tire Access Port Accessibility
Fitment for the Redline Triple LED is based on the amount of Tailgate's available flat surface length-wise. If your vehicle has 48" of available space length-wise across the tailgate then the 48" version will fit nicely. If you have 60" of available space length-wise across the tailgate then the 60" version should be purchased.

Redline Triple Light Bar Coordination:

• Top Row: Turn Signal/ Hazards
• Middle Row: Reverse Lights
• Bottom Row: Brake/ Running Lights

Specifications:

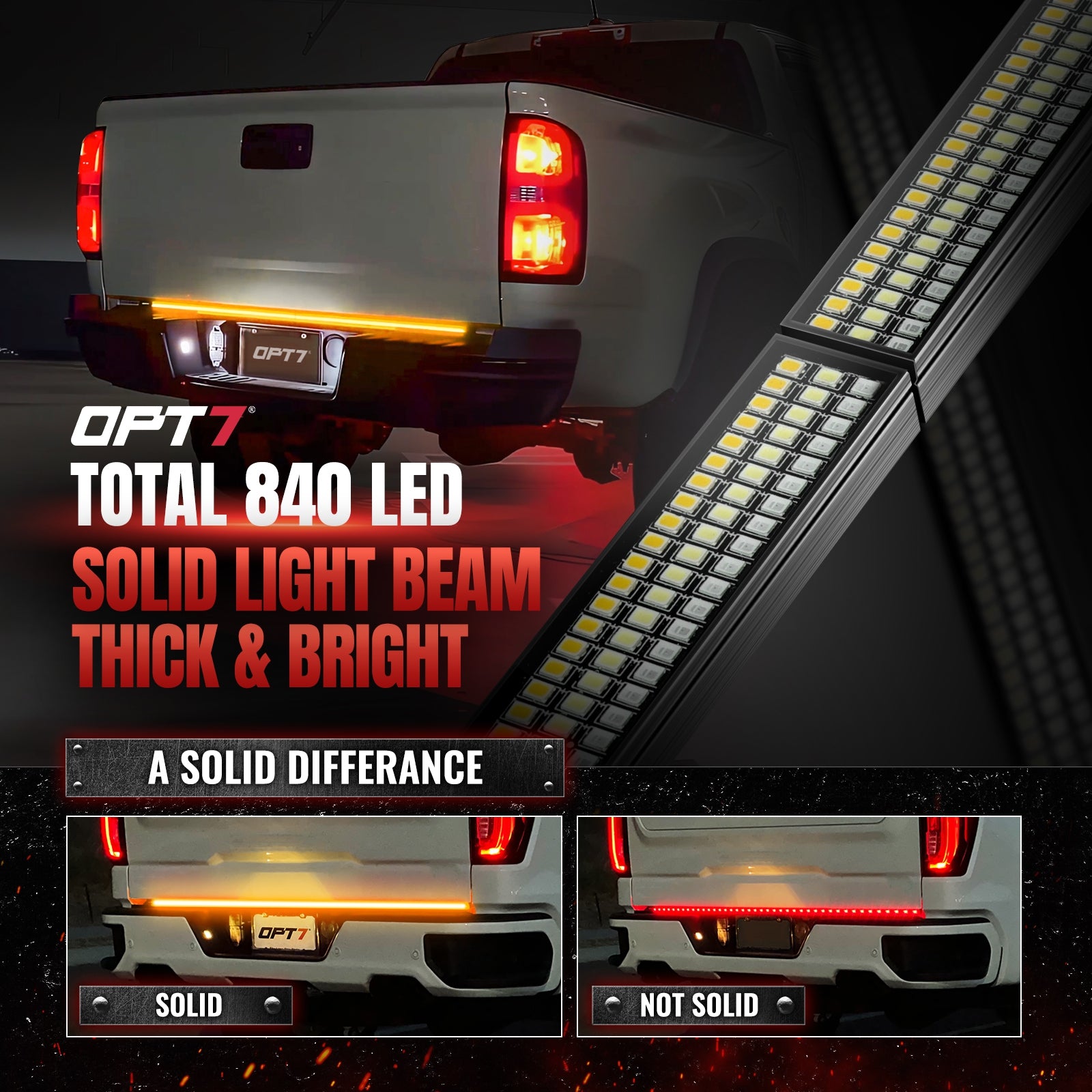

• LED Count: 840 LEDs on 48-inch or 1080 LEDs on 60-inch

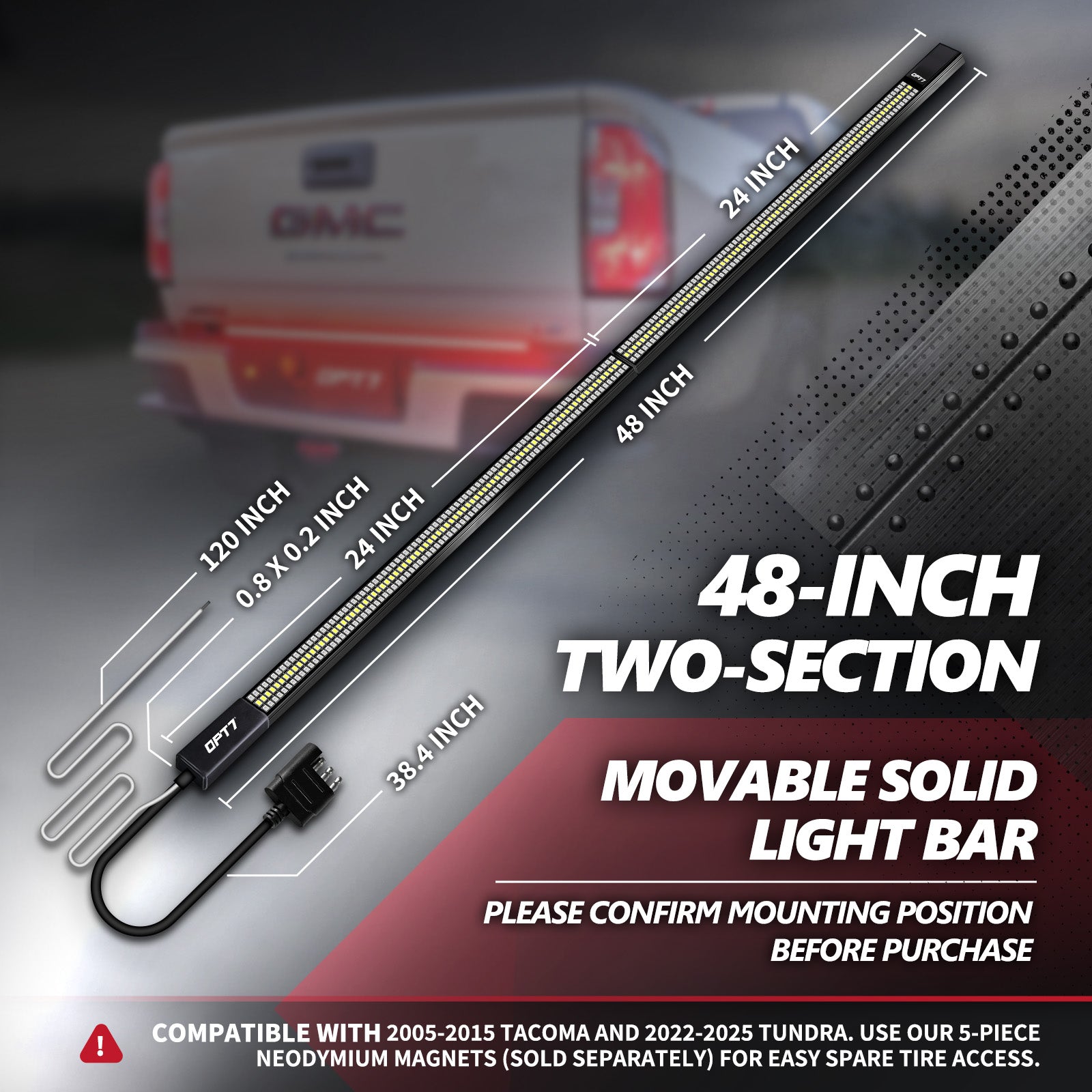

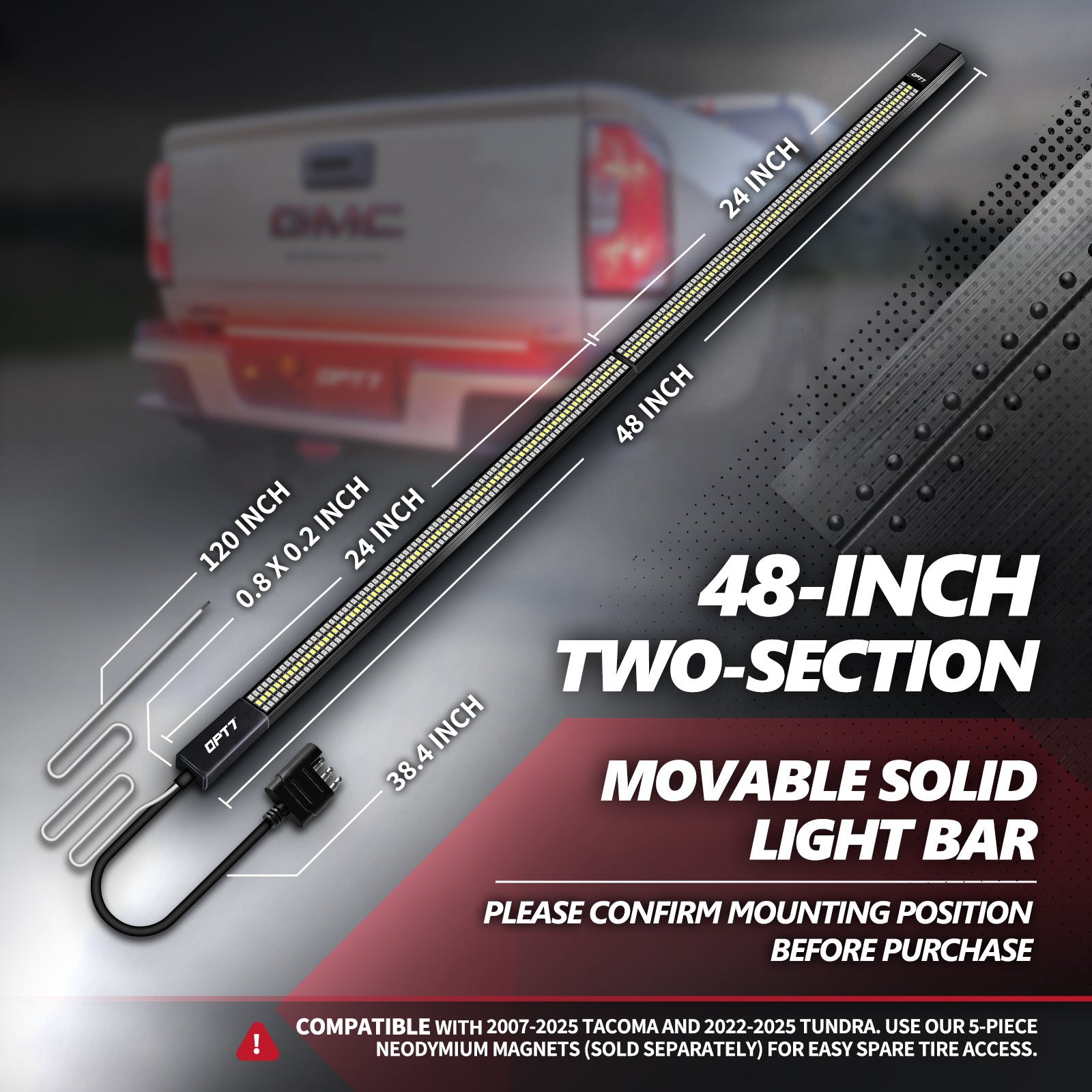

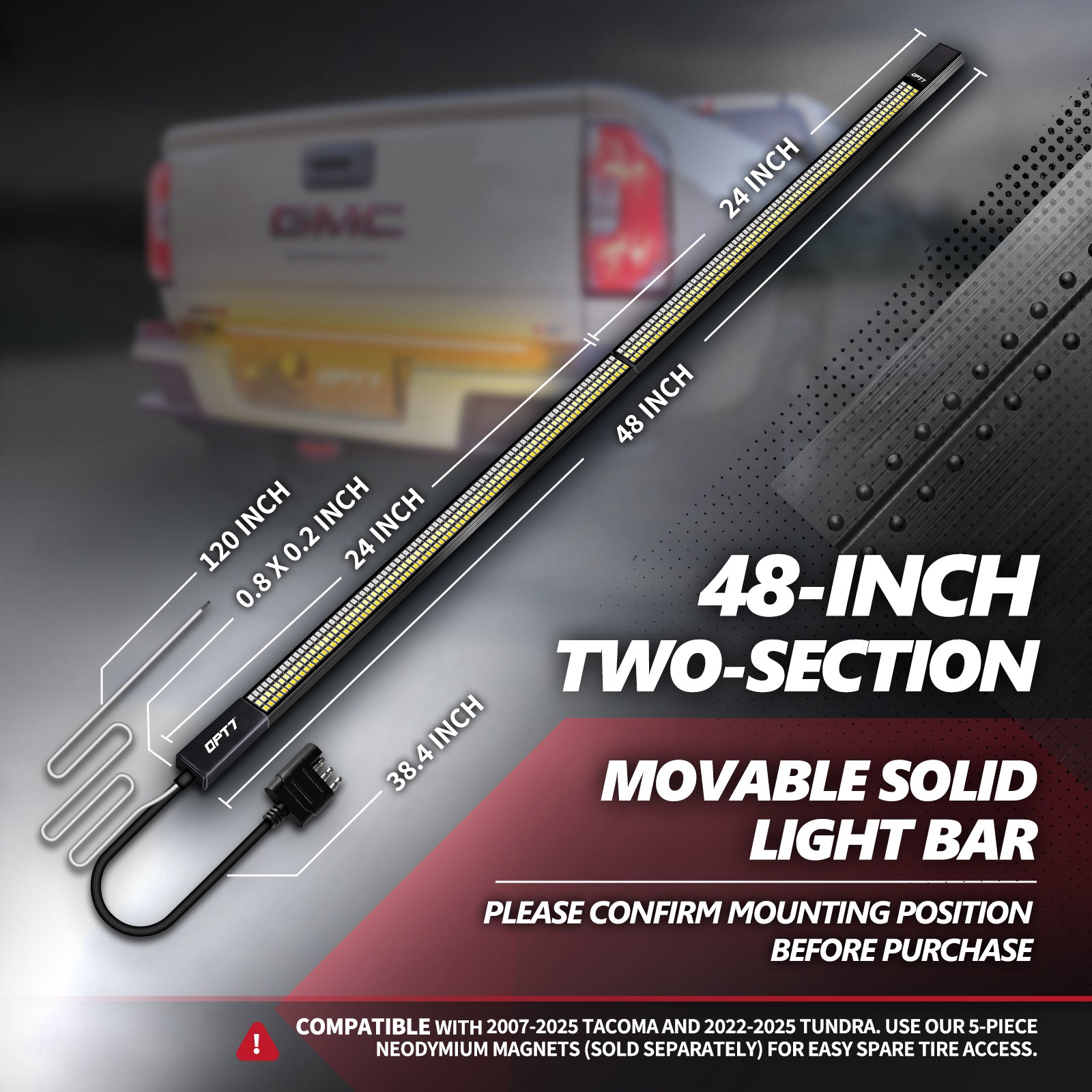

• Product Dimensions: 60-inch (L30.3" x W0.8" x H0.2") or 48-inch (L24" x W0.8" x H0.2")
• Wattage: 3W
• Voltage: DC 12V
• Amperage: 0.25 amp
• Turn Signal Style: “Sequential”
• Waterproof Rating: IP67
• Material: Rust-Resistant Aluminum.
• LED Type: Advanced Bright LED
• Feature Set: Running | Brake | "1-2-3" Sequential Turn Signals | Reverse | Sequential Hazards
  Exclusive Reverse Light Launch Sequence Safety Feature: when you shift into reverse, the light will first flash the extreme white light three times for safety, then the reverse white light will stay on continuously.
• Mounting: Automotive Adhesive with reinforced applicator
• Working Temp: -20°F to 170°F
• Plug’n’Play: 4-Pin Trailer Adapter with Backup wiring
• Compatible with: Ford's Blind Spot Information System (BLIS) with Trailer Coverage and Cross Traffic Alert. MUST BE HARD-WIRE DIRECTLY INTO TAIL LIGHTS
• Not Compatible with: 2022+ Chevrolet Silverado/GMC Sierra, 2022+ Ford Maverick
• Warranty: 1 Year

Add Prime Warranty Add On For $15.00!

Install Guide:

• Redline Parlux Triple Tailgate Light Bar Installation Guide - Click Here
• Redline Easy Connect for Silverado Harness Install Guide - Click Here
• What function does each color pin serve on the Redline Triple Tailgate Bar with Hard Wire Harness? - Click Here
• What function does each color serve on the Redline Triple LED Tailgate Bar for hard-wiring? - Click Here

The Triple Tailgate has 2 installation methods: Plug & Play and hard-wired.

1) Triple Tailgate Only (Plug & Play): Vehicles that do not have any of the following equipped:

• Rear Camera
• Back-up/Parking Sensor
• Trailer Assist Feature (HUD display that provides trailer connection status notifications)
• BLIS (Blind Spot Notification Signal)

 2)Triple Tailgate (Hard-wired)

• BLIS (Blind Spot Notification Signal)
• Rear Camera
• Back-up/Parking Sensor
• Trailer Assist Feature (HUD display that provides trailer connection status notifications)
• ALL 2019 + VEHICLES

 You will need the Hardwire Harness to help hardwiring - Click Here

 Or you may use our OPT7 Redline Easy Connect Harness.

• 18-20 Redline Easy Connect Tail Light Harness for Ford F150 No BLIS - Click Here
• 15-20 Redline Easy Connect Tail Light Harness for Ford F150 with BLIS - Click Here
• 15-18 Redline Easy Connect Tail Light Harness for Ford F150 - Click Here
• OPT7 Redline Easy Connect Tail Light Harness for 2019-2021 Silverado/Sierra 1500 - Click Here

2020 - 2023 Ford, Ram, Toyota, Nissan, etc. (4pin trailer plug connector) vehicles - IMPORTANT: Newer pickup truck with a sophisticated computer system (BLIS) for the towing connector, it often detects if there is a modification on the towing if you are using plug and play or upon connected if it connects something else other than a trailer. This means that the computer is not reading the light bar correctly and is unable to signal the lightbar to function to light up - brake, turn signals, reverse, etc. Therefore, the recommendation is to have the light bar hardwire directly into the tail lights. You must not hardwire into the trailer tow plug, it must be hardwire into the tail lights directly.
